Mini RHV

Product name	Download
Mini RHV	Catalogue

Product Feature
1. A short length hemostatic valve device in a compact size. 2. Minimizing the catheter section occupied by RHV makes it easy for the catether to reach the distant lesion point. 3. When the valve is completely opened, the valve is not separated from the product. 4. The efficient implementation of the angle of the side port improves the accessibility of the additionally inserted catheter. 5. A product specialized for connecting two or more RHV. ▶ Screw Type / 7, 9Fr (2 model) ▶ Single : mini RHV / Set : mini RHV & Insertion Tool & Torque Device

Product Feature

1. A short length hemostatic valve device in a compact size.

2. Minimizing the catheter section occupied by RHV makes it easy for the catether to reach the distant lesion point.

3. When the valve is completely opened, the valve is not separated from the product.

4. The efficient implementation of the angle of the side port improves the accessibility of the additionally inserted catheter.

5. A product specialized for connecting two or more RHV.

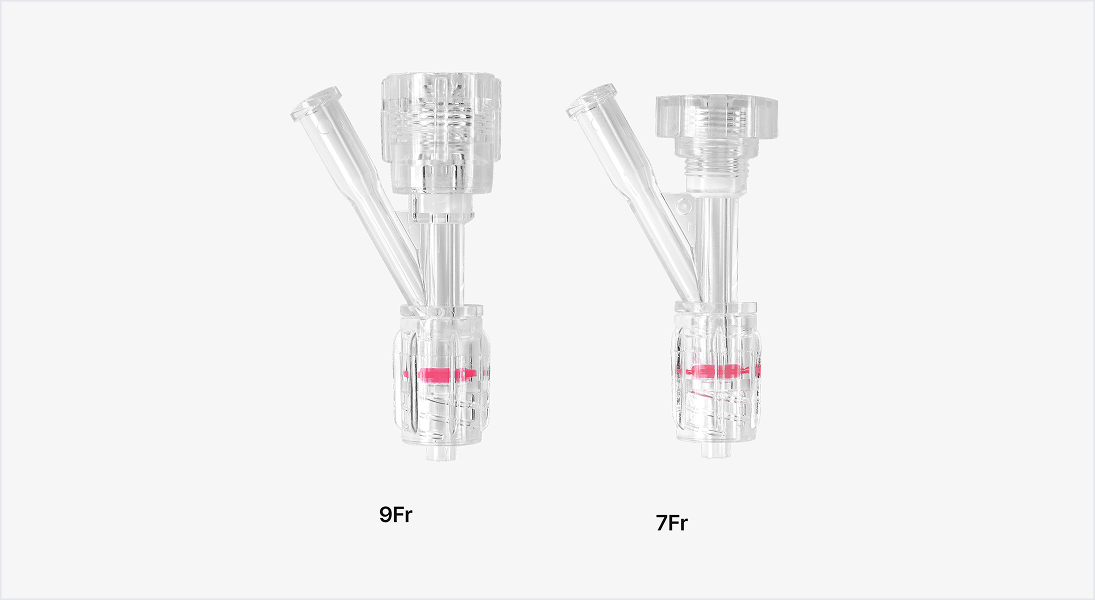

▶ Screw Type / 7, 9Fr (2 model)

▶ Single : mini RHV / Set : mini RHV & Insertion Tool & Torque Device

Product name	Model No.	Product Specification	Sterilization	Package (WxDxH)
9mini RHV	RHV-9M-W01	9Fr, 54mm(L)	E.O GAS	50EA / BOX (310x170x185)
9mini RHV set	RHV-9M-W04	9Fr, 54mm(L) / Torquer Device, Insertion Tool	E.O GAS	50EA / BOX (310x170x185)
7mini RHV	RHV-7M-W01	7Fr, 50mm(L)	E.O GAS	50EA / BOX (310x170x185)
7mini RHV set	RHV-7M-W04	7Fr, 50mm(L) / Torquer Device, Insertion Tool	E.O GAS	50EA / BOX (310x170x185)
