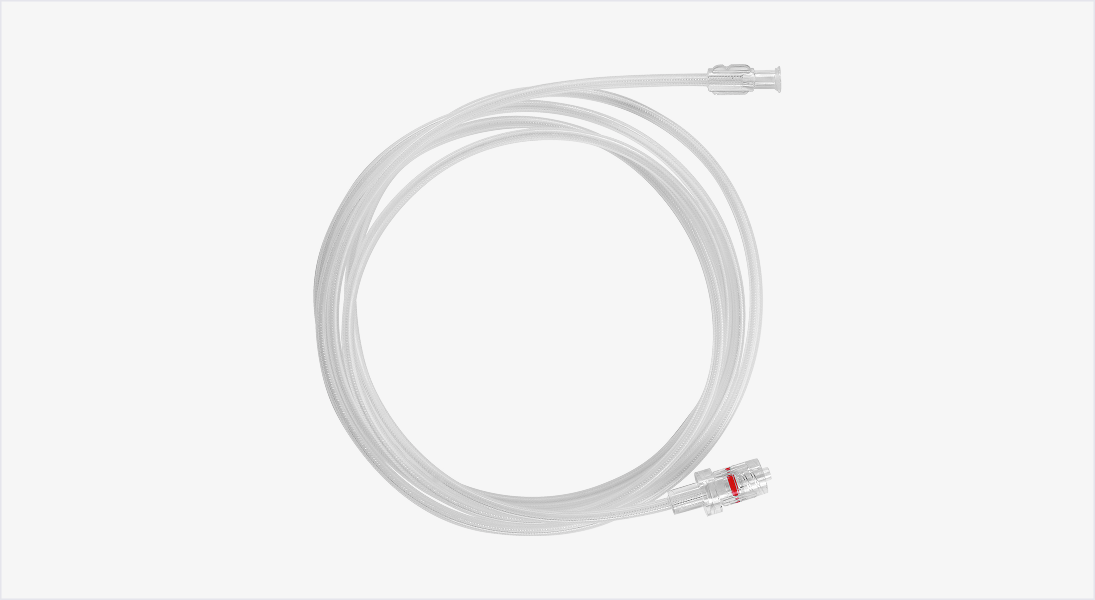

Braid Type 1,200psi (MAX)
· Product basic information
Product name Download
Braid Type 1200 psi (MAX) Catalogue
Contact us
· Detailed information on products
Product Feature

1. Used when injecting Contrast media during interventional procedures.

2. Manufactured using solid materials such as Polycarbonate and Polyurethane.

3. Supports fast flow rate and pressure when injecting contrast media.

4. Braid type 1,200psi(MAX) pressure resistance.

5. Designed to solve the twisting of the line by adopting the Rotating Adapter method of the connection part.

6. Can be custom-made in a variety of lengths to client's needs(100mm~ )
· Detail
Product name Model No. Product Specification Sterilization Package (WxDxH)
Extension Line High Pressure
1200psi(MAX)		 9051201 1200psi(MAX), 100mm (4") E.O GAS 50EA / BOX (220x220x130)
9051202 1200psi(MAX), 150mm (6") E.O GAS 50EA / BOX (220x220x130)
9051203 1200psi(MAX), 300mm (12") E.O GAS 50EA / BOX (220x220x130)
9051205 1200psi(MAX), 500mm (20") E.O GAS 50EA / BOX (310x170x185)
9051206 1200psi(MAX), 600mm (24") E.O GAS 50EA / BOX (310x170x185)
9051276 1200psi(MAX), 760mm (30") E.O GAS 50EA / BOX (310x170x185)
9051209 1200psi(MAX), 900mm (35") E.O GAS 50EA / BOX (310x170x185)
9051212 1200psi(MAX), 1200mm (48") E.O GAS 50EA / BOX (310x170x185)
9051216 1200psi(MAX), 1600mm (63") E.O GAS 50EA / BOX (310x170x185)
9051218 1200psi(MAX), 1800mm (72") E.O GAS 50EA / BOX (310x170x185)
9051220 1200psi(MAX), 2000mm (78") E.O GAS 50EA / BOX (310x170x185)
9051224 1200psi(MAX), 2400mm (95") E.O GAS 50EA / BOX (310x170x185)
9051226 1200psi(MAX), 2600mm (102") E.O GAS 50EA / BOX (310x170x185)
9051235 1200psi(MAX), 3500mm(138”) E.O GAS 25EA / BOX (315x200x245)
