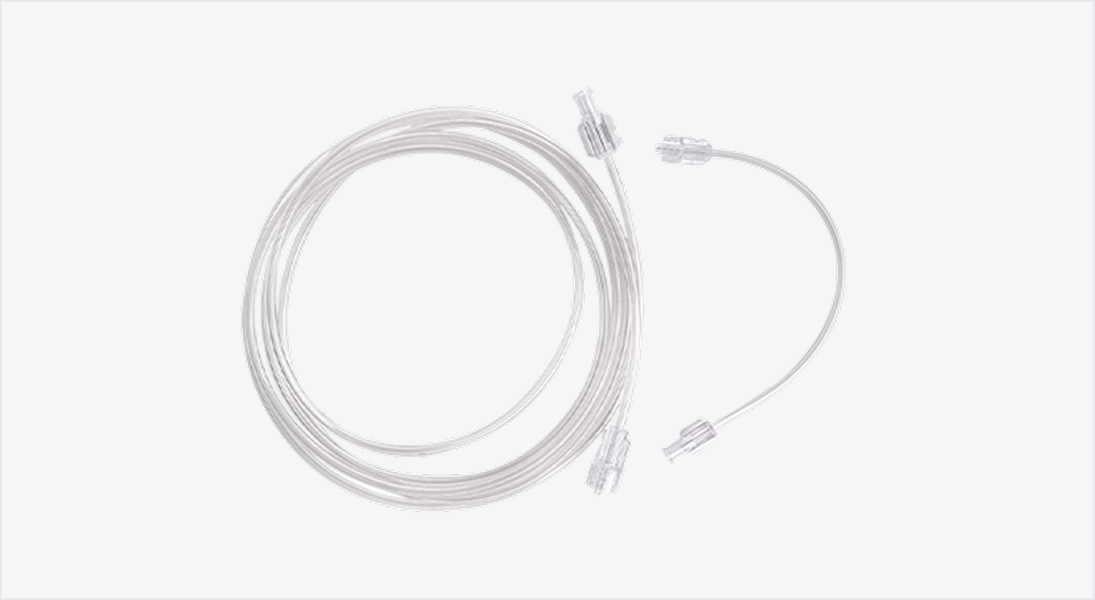

Non-Braid Type 500psi (MAX)

Product name	Download
Non-Braid Type 500 psi (MAX)	Catalogue

Product Feature
1. Used when injecting Contrast media during interventional procedures. 2. Manufactured using solid materials such as Polycarbonate and Polyurethane. 3. Supports fast flow rate and pressure when injecting contrast media. 4. Non-Braid type 500 PSI(MAX) pressure resistance 5. Can be custom-made in a variety of lengths to client's needs(100mm~ )

Product Feature

1. Used when injecting Contrast media during interventional procedures.

2. Manufactured using solid materials such as Polycarbonate and Polyurethane.

3. Supports fast flow rate and pressure when injecting contrast media.

4. Non-Braid type 500 PSI(MAX) pressure resistance

5. Can be custom-made in a variety of lengths to client's needs(100mm~ )

Product name	Model No.	Product Specification	Sterilization	Package (WxDxH)
Extension Line High Pressure 500psi(MAX)	9050501	500psi(MAX), 100mm (4")	E.O GAS	50EA / BOX (220x220x130)
	9050502	500psi(MAX), 150mm (6")	E.O GAS	50EA / BOX (220x220x130)
	9055250	500psi(MAX), 250mm (10")	E.O GAS	50EA / BOX (220x220x130)
	9050506	500psi(MAX), 600mm (24")	E.O GAS	50EA / BOX (310x170x185)
	9050507	500psi(MAX), 760mm (30")	E.O GAS	50EA / BOX (310x170x185)
	9050509	500psi(MAX), 900mm (35")	E.O GAS	50EA / BOX (310x170x185)
	9050512	500psi(MAX), 1200mm (48")	E.O GAS	50EA / BOX (310x170x185)
	9050515	500psi(MAX), 1500mm (60")	E.O GAS	50EA / BOX (310x170x185)
	9050518	500psi(MAX), 1800mm (72")	E.O GAS	50EA / BOX (310x170x185)
	9050520	500psi(MAX), 2000mm (78")	E.O GAS	50EA / BOX (310x170x185)
