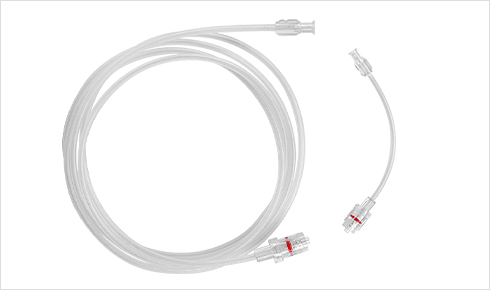

Braid Type 1,500psi (MAX)

· Product basic information

Product name Download
Braid Type 1,500 psi (MAX) Catalogue
Contact us

· Detailed information on products

Product Feature

  • 1. Used when injecting Contrast media during interventional procedures.
  • 2. Manufactured using solid materials such as Polycarbonate and Polyurethane.
  • 3. Supports fast flow rate and pressure when injecting contrast media.
  • 4. Braid type 1,500psi(MAX) pressure resistance.
  • 5. Designed to solve the twisting of the line by adopting the Rotating Adapter method of the connection part.
  • 6. Can be custom-made in a variety of lengths to client's needs(100mm~ )

· Detail

Product Name Model No. Product Specification Sterilization Package (WxDxH)
Extension Line
1,500psi (MAX)
A02B16 1,500psi(MAX), 1200mm ML/ML E.O GAS 30EA / BOX (315x200x245)
A02B17 1,500psi(MAX), 1200mm ML/FL E.O GAS 30EA / BOX (315x200x245)
A02B18 1,500psi(MAX), 2000mm ML/FL E.O GAS 30EA / BOX (315x200x245)
Product Name Model No.
Extension Line 1,500psi (MAX) A02B16
A02B17
A02B18
Product Specification Sterilization
1,500psi(MAX), 1200mm ML/ML E.O GAS
1,500psi(MAX), 1200mm ML/FL E.O GAS
1,500psi(MAX), 2000mm ML/FL E.O GAS
Package (WxDxH) -
30EA / BOX (315x200x245) -
30EA / BOX (315x200x245) -
30EA / BOX (315x200x245) -
